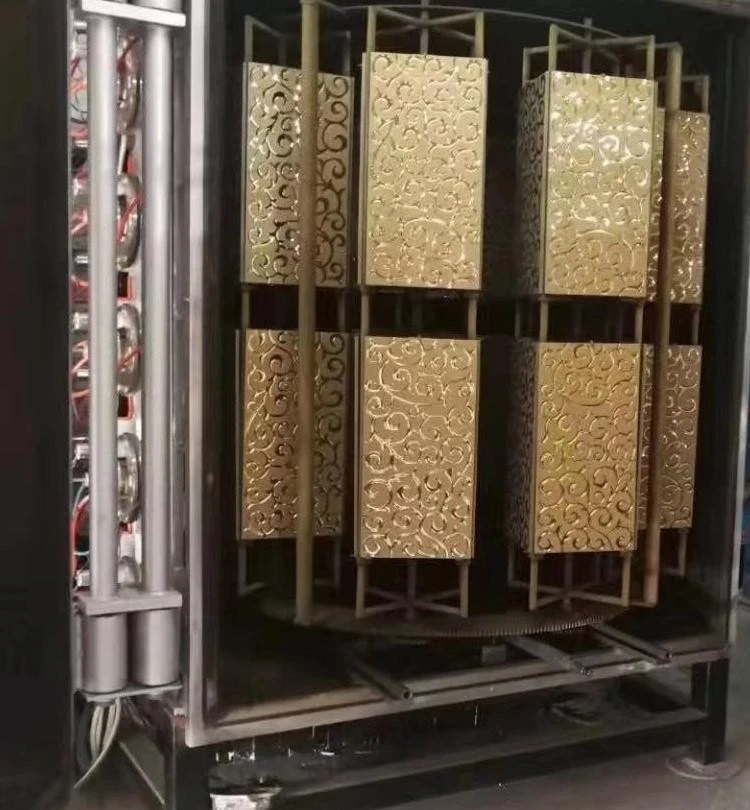

Ceramics PVD coating machine is a high-tech equipment used to deposit one or more layers of special thin films (such as metal, metal compound, non-metal compound, etc.) on the surface of ceramic tiles.

It gives traditional ceramic tiles a brand new appearance and performance, and is a key equipment for the production of high-end and functional ceramic tiles.

Application advantages:

Create revolutionary appearance

Realistic metal texture:

Achieve the appearance of pure gold, silver, copper, titanium, stainless steel and other metals with high gloss, matte, brushed, antique and other effects, enhancing the product grade and artistic sense.

Rich colors:

Go beyond the limitations of traditional glazes and provide unique champagne gold, rose gold, bronze, gunmetal, black and various color effects.

Significantly increase product added value

Give the tiles a luxurious, fashionable and high-tech appearance to meet the design needs of high-end home decoration, hotels and commercial spaces.

Their uniqueness and scarcity make their prices much higher than ordinary tiles, bringing higher profits to the company.

Enhance surface performance

Wear resistance:

The deposited ceramic film layer (such as TiN, ZrN, CrN, TiAlN, DLC diamond-like carbon film) has extremely high hardness, which greatly improves the wear resistance and scratch resistance of the tile surface and extends its service life.

Corrosion resistance:

The dense film layer can effectively block the erosion of the substrate by water vapor, acid, alkali and other corrosive media, thereby improving weather resistance and service life.

Easy to clean:

The dense and smooth surface is not easy to adhere to dirt and is easier to clean.

Environmental protection and safety

The production process does not discharge any heavy metal-contaminated wastewater, complying with increasingly stringent environmental regulations.

The film layer is stable, non-toxic and harmless, does not contain harmful substances (such as lead, cadmium, hexavalent chromium), and meets food contact grade and other safety standards.

Ceramics PVD coating machine is a key equipment to enhance the core competitiveness of ceramic tile products.

Its core features are vacuum environment, physical vapor deposition, high-precision control, low-temperature process, environmental protection and high automation.

These features bring significant application advantages: creating subversive luxury metal appearance and rich color texture, greatly improving product added value, significantly enhancing the physical and chemical properties of ceramic tile surface such as wear resistance and corrosion resistance, green production process, compatible with existing processes, and support for personalized customization.

This makes vacuum coating technology an indispensable tool for producing high-end, functional, high-value-added ceramic tiles.

Model	Py-700	Py-800	Py-900	Py-1000	Py-1200	Py-1200
Vacuum Chamber Size(mm)	Ф700×H800mm	Ф800×H900mm	Ф900×H1000mm	Ф1000×H1200mm	Ф1200×H1200mm	Ф1200×H1500mm
Vacuum System	The vertical front door structure is equipped with air pumping system and water cooling system
Vacuum Measurement	Maintenance pump + mechanical pump + Roots pump + diffusion pump or molecular pump (specific models can be configured according to customer requirements)
Supply Type	Dc power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Rotation	Multi-axis planetary male rotation, frequency control (controllable and adjustable)
Gas	Argon, nitrogen, oxygen, acetylene, etc.
Cooling Method	Water cooling cycle, with industrial cooling tower or industrial chiller (chiller) or cryogenic system. (Provided by customer)
Mode of control	PLC+ touch screen operation or computer control, manual, semi-automatic, automatic mode.
Warning	Alarm the abnormal situation such as water shortage, overvoltage and undervoltage, circuit break, etc. of pump and target, and implement corresponding protection measures and electrical interlocking function.
Output Frequency	Voltage 380V±5%, frequency 50Hz (according to the customer's national electricity standard configuration)
Remark	Non-standard equipment can be designed and manufactured according to user requirements
