Hey there! As a supplier of Gold Coating Machines, I know how crucial it is to ensure consistent coating results. In this blog, I'm gonna share some tips and tricks on how to achieve that.
Understanding the Basics of Gold Coating
Before we dive into the details of ensuring consistency, let's quickly go over how gold coating works. Gold coating is a process where a thin layer of gold is applied to the surface of an object. This can be done through various methods, such as physical vapor deposition (PVD), electroplating, and chemical vapor deposition (CVD). In our case, we're mainly talking about PVD gold coating machines, which are popular for their precision and high - quality results.
Factors Affecting Coating Consistency
There are several factors that can impact the consistency of the gold coating. Let's take a look at each one of them.
1. Substrate Preparation
The first step in getting a consistent gold coating is proper substrate preparation. If the surface of the object to be coated is dirty, rough, or has contaminants, the coating won't adhere evenly. So, it's essential to clean the substrate thoroughly before the coating process. This can involve using solvents, ultrasonic cleaning, or mechanical polishing.
For example, if you're coating a metal part, you might need to degrease it first to remove any oil or grease residues. Then, you can use a fine - grit sandpaper to smooth out the surface and create a better bonding surface for the gold coating.
2. Coating Material Quality
The quality of the gold coating material also plays a significant role in consistency. Low - quality gold materials might have impurities or inconsistent particle sizes, which can lead to uneven coating. Make sure to source high - quality gold targets or materials from reliable suppliers.
We recommend using pure gold or gold alloys with a known and consistent composition. This way, you can be more confident that the coating will be uniform across the surface of the substrate.
3. Machine Settings
The settings of the Gold Coating Machine are critical for achieving consistent results. Parameters such as deposition rate, temperature, pressure, and gas flow rate need to be carefully calibrated.
- Deposition Rate: A too - high deposition rate can cause the coating to be rough and uneven, while a too - low rate can result in a thin and patchy coating. You need to find the optimal deposition rate for your specific application.
- Temperature: The temperature inside the coating chamber affects the mobility of the gold atoms and the adhesion of the coating. Different substrates and coating materials might require different temperature settings.
- Pressure: Maintaining the right pressure in the chamber is important. A stable pressure ensures a consistent environment for the deposition process.
- Gas Flow Rate: If your PVD process involves using gases like argon, the gas flow rate needs to be controlled precisely. The gas helps in the sputtering process and affects the quality of the coating.
4. Chamber Environment
The environment inside the coating chamber can also affect consistency. Any leaks in the chamber can introduce contaminants, which will ruin the coating. Regularly check the seals and gaskets of the chamber to ensure a tight seal.
Also, the presence of dust or other particles in the chamber can cause defects in the coating. Keep the coating area clean and use proper air filtration systems to minimize the risk of contamination.
Tips for Ensuring Coating Consistency
Now that we've identified the factors that affect coating consistency, here are some practical tips to help you achieve it.
1. Regular Maintenance
Regular maintenance of your Gold Coating Machine is a must. This includes cleaning the interior of the chamber, replacing worn - out parts, and calibrating the machine regularly. By keeping the machine in good working condition, you can ensure that the coating process is stable and consistent.
For example, clean the target holder and the substrate holder to prevent any build - up of gold or other materials. Replace the pumps and valves as needed to maintain proper pressure and gas flow.
2. Process Monitoring
Implement a process monitoring system to keep track of the key parameters during the coating process. This can involve using sensors to measure temperature, pressure, and deposition rate in real - time. By monitoring these parameters, you can detect any deviations from the optimal settings and make adjustments immediately.
For instance, if the deposition rate starts to increase unexpectedly, you can adjust the power supply to the target to bring it back to the desired level.
3. Quality Control Checks
Perform regular quality control checks on the coated products. This can include visual inspections, thickness measurements, and adhesion tests. By checking the quality of the coating regularly, you can identify any issues early on and take corrective actions.
For example, use a coating thickness gauge to measure the thickness of the gold coating at different points on the substrate. If the thickness varies significantly, you need to investigate the cause and make adjustments to the machine settings.
4. Operator Training
Make sure your operators are well - trained in using the Gold Coating Machine. They should understand the principles of the coating process, the importance of each parameter, and how to troubleshoot common problems. A skilled operator can make a big difference in achieving consistent coating results.
We offer training programs for our customers to ensure that their operators can use our machines effectively. If you're interested in learning more about our training services, feel free to reach out to us.
Our Gold Coating Machine Solutions
At our company, we offer a range of Gold Coating Machines that are designed to provide consistent and high - quality coating results. Our machines are equipped with advanced control systems that allow for precise adjustment of the key parameters.

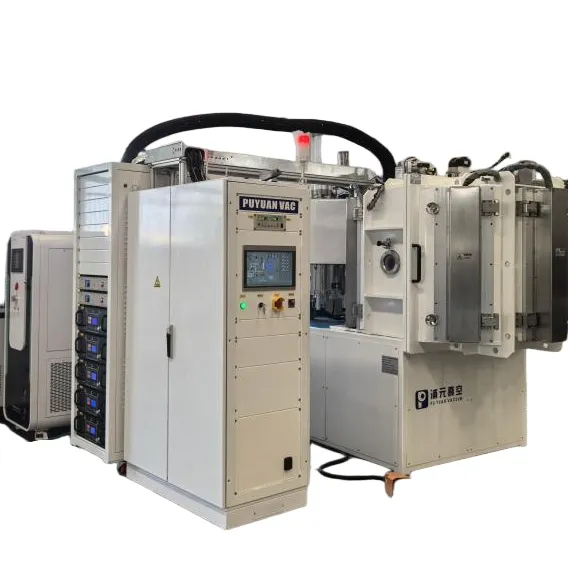

We also have different models of coating machines to suit various applications. For example, if you're in the medical device industry, our PVD Medical Device Coating Equipment is specifically designed to meet the strict requirements of medical device coating.
If you're in the golf industry, our Golf PVD Coating Machine can provide beautiful and durable gold coatings for golf clubs and other equipment.
For those in the tool manufacturing industry, our Tools Hard Film PVD Vacuum Coating Equipment can enhance the hardness and wear resistance of tools with a gold - based hard film coating.
Conclusion
Ensuring the coating consistency of a Gold Coating Machine is a combination of proper substrate preparation, using high - quality coating materials, setting the machine parameters correctly, maintaining a clean chamber environment, and implementing regular maintenance and quality control measures.
If you're looking for a reliable Gold Coating Machine supplier, we're here to help. Our machines are designed to provide consistent and high - quality coating results, and we offer excellent after - sales support. Whether you're in the medical, golf, or tool manufacturing industry, we have the right solution for you.
If you're interested in our products or have any questions about gold coating, don't hesitate to contact us. We're always happy to have a chat and discuss how we can meet your coating needs.
References
- "Physical Vapor Deposition: A Review of the Process and Applications" - Journal of Coating Technology
- "Principles of Thin Film Deposition" - Springer Publishing
- "Quality Control in Coating Processes" - ASQ Quality Press
