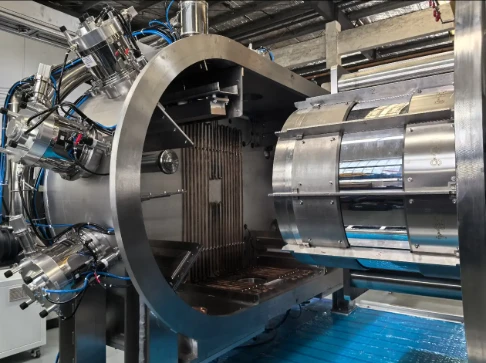

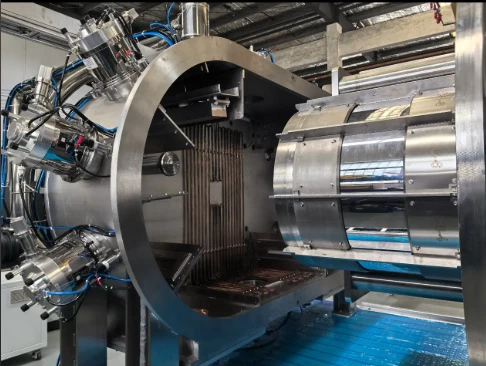

300mm Double-sided R2R Vacuum Deposition Equipment
(Magnetron Sputtering & Evaporation) for Solid-State Battery Anode Current Collector Foil
Applications:
Vacuum coating on the surface of solid-state battery anode current collector
for solid-state battery energy storage
specially used for solid-state battery anode current collector foil.
Advantages
1. Magnetron sputtering + vacuum evaporation composite process
2. Compatible with various flexible roll materials, low-temperature processing protects the substrate
3. High chammber cleanliness
4. Continuous winding mass production, high capacity
5. Tension correction control system, high yield
6. Intelligent PLC fully automatic control, process replicability
7. Highly customizable, turnkey delivery
Roll-to-Roll Magnetron Sputtering Coating Machine configuration
| Model | PY/CJR-300S | Coating Technology | Roll to roll PVD coating (magnetron sputtering + evaporation) |
| Voltage | 380 V, 460V | Operating Mode | Automatic, Semi-Automatic |
| Application | Vacuum Coating on Solid-State Battery Anode Current Collector Surface | Core Components | PLC, Pump, Engine, Bearing, Motor, Pressure Vessel, Gear, Gearbox |
| Power(w) | 30-150kw | Place of origin | Kunshan Jiangsu |
| Weight | 8000kg | Dimension | Customized |
| After-sales Service Provided | Engineers available to service machinery overseas | Control mode | Automatic PLC touch screen control |
