Hey there! I'm a supplier of Multi - arc Coating Machines. Today, I'm gonna share with you how to troubleshoot the arc source of a Multi - arc Coating Machine.
First off, let's understand what the arc source is in a Multi - arc Coating Machine. The arc source is a key component that generates the arc discharge, which vaporizes the target material and deposits it onto the substrate to form a coating. When something goes wrong with the arc source, it can mess up the whole coating process.
Common Arc Source Problems and How to Fix Them
1. Arc Won't Start
One of the most common issues is that the arc just won't start. There could be several reasons for this.
- Power Supply Issues: Check if the power supply to the arc source is working properly. Make sure the cables are connected tightly and there are no signs of damage. Sometimes, a loose connection can prevent the power from reaching the arc source. If the power supply is the problem, you might need to replace a faulty cable or check the power settings on the control panel.
- Target Surface Contamination: The target surface might be contaminated with dust, oil, or other debris. This can prevent the arc from starting. To fix this, clean the target surface carefully using a suitable cleaning agent. You can use a soft cloth or a brush to gently remove the contaminants.
- Magnetic Field Problems: The magnetic field around the arc source is crucial for maintaining the arc. If the magnetic field is weak or misaligned, the arc might not start. Check the magnetic coils and make sure they are working correctly. You may need to adjust the position of the coils or replace them if they are damaged.
2. Unstable Arc
An unstable arc can lead to uneven coating thickness and poor coating quality. Here's how you can troubleshoot this problem.
- Gas Flow Issues: The gas flow in the coating chamber affects the stability of the arc. If the gas flow is too high or too low, the arc can become unstable. Check the gas flow meters and make sure the gas flow rate is within the recommended range. You may need to adjust the valves to control the gas flow.
- Target Erosion: Over time, the target material gets eroded. If the target is eroded unevenly, it can cause the arc to be unstable. Inspect the target and if it's severely eroded, replace it with a new one.
- Cooling Problems: The arc source generates a lot of heat, and proper cooling is essential for its stable operation. Check the cooling system to make sure there is enough coolant flowing through the arc source. A blocked coolant line or a malfunctioning pump can lead to overheating and an unstable arc.
3. Arc Extinguishing Prematurely
If the arc goes out before the coating process is complete, it's a big problem. Here are some possible causes and solutions.
- Voltage Fluctuations: Voltage fluctuations in the power supply can cause the arc to extinguish. Use a voltage stabilizer to ensure a constant voltage supply to the arc source.
- Impurities in the Target: Impurities in the target material can cause the arc to extinguish. Make sure you are using high - quality target materials. If the target has a lot of impurities, replace it.
- Vacuum Leak: A vacuum leak in the coating chamber can also cause the arc to go out. Check the seals and gaskets in the chamber for any signs of damage. Use a vacuum leak detector to find and fix the leaks.
Regular Maintenance to Prevent Arc Source Problems
Regular maintenance is key to keeping the arc source of your Multi - arc Coating Machine in good working condition.
- Cleaning: Clean the arc source and the coating chamber regularly. This helps prevent the build - up of contaminants that can cause problems.
- Inspection: Regularly inspect the target, magnetic coils, power cables, and other components of the arc source. Look for signs of wear, damage, or erosion.
- Calibration: Calibrate the power supply, gas flow meters, and other control systems regularly to ensure accurate operation.
Our Product Range

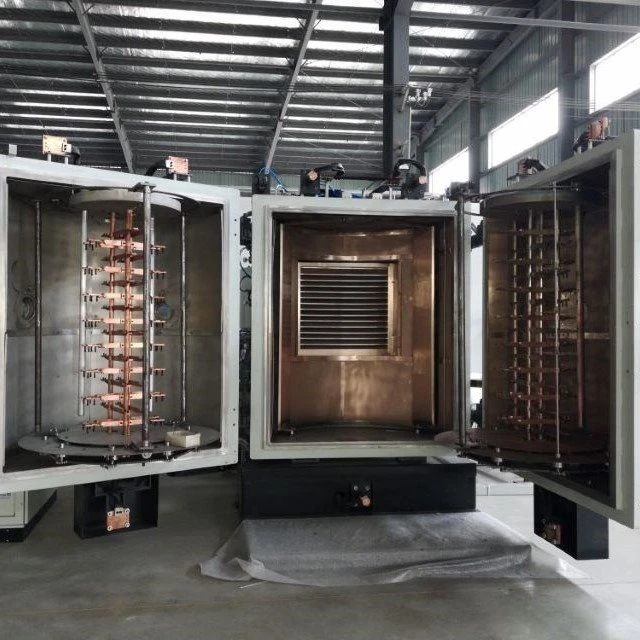

As a Multi - arc Coating Machine supplier, we offer a wide range of high - quality coating machines. For example, we have the Two - door Evaporation Vacuum Coating Machine, which is great for various coating applications. Our Anti - reflective Coating Machine is perfect for producing anti - reflective coatings on different substrates. And of course, our Multi Arc Ion Titanium Coating Machine is a top - notch choice for ion titanium coating.
If you're having trouble with your Multi - arc Coating Machine's arc source or are interested in purchasing one of our machines, don't hesitate to get in touch. We have a team of experts who can provide you with technical support and help you choose the right machine for your needs.
References
- "Handbook of Vacuum Coating Technology"
- "Coating Technology for Engineers"
So, that's all about troubleshooting the arc source of a Multi - arc Coating Machine. I hope this blog post has been helpful to you. If you have any questions or need further assistance, feel free to reach out!
