The Physical Vapor Deposition (PVD) process has revolutionized the tool - manufacturing industry by enhancing the performance and lifespan of cutting tools. As a well - established Tool PVD Coating Machine supplier, I've witnessed firsthand how various parameters in the PVD coating process contribute to the quality of the final coating. One such crucial parameter is the bias voltage. In this blog, I'll delve into the role of bias voltage in a Tool PVD Coating Machine.
Understanding the Basics of PVD Coating
Before we discuss the bias voltage, it's essential to understand the PVD coating process. PVD is a vacuum - based coating technique where a solid material (the target) is vaporized and deposited onto a substrate (the tool). This process typically involves three main steps: evaporation of the target material, transportation of the vaporized particles through the vacuum chamber, and deposition on the substrate.
What is Bias Voltage?
Bias voltage is an electrical potential applied to the substrate (the tool) during the PVD coating process. It creates an electric field between the substrate and the plasma in the vacuum chamber. This electric field influences the behavior of the charged particles in the plasma, such as ions and electrons.
Role of Bias Voltage in Ion Bombardment
One of the primary roles of bias voltage is to control ion bombardment. When a negative bias voltage is applied to the substrate, positively charged ions in the plasma are accelerated towards the substrate. This ion bombardment has several important effects:
Surface Cleaning
Before the actual coating deposition, ion bombardment can be used to clean the surface of the tool. The high - energy ions knock off contaminants, oxides, and adsorbed gases from the substrate surface. This is crucial because a clean surface ensures better adhesion of the coating to the substrate. For example, if there are impurities on the tool surface, the coating may not bond properly, leading to premature coating failure.
Densification of the Coating
During the coating deposition, ion bombardment can densify the growing coating. The energetic ions can rearrange the atoms in the coating, filling in voids and reducing porosity. A denser coating has better mechanical properties, such as higher hardness and wear resistance. For instance, in high - speed cutting applications, a denser coating can withstand the high - stress conditions and prevent the tool from wearing out quickly.
Control of Coating Morphology
Bias voltage also plays a role in controlling the morphology of the coating. By adjusting the bias voltage, we can influence the growth direction and grain size of the coating. A higher bias voltage generally leads to a more columnar growth structure, while a lower bias voltage can result in a more equiaxed or fine - grained structure. The choice of coating morphology depends on the specific application of the tool. For example, a columnar structure may be preferred for some applications where high hardness and wear resistance are required, while an equiaxed structure may be better for applications where good toughness is needed.
Influence on Coating Adhesion
Adhesion is a critical factor in the performance of PVD - coated tools. The bias voltage can significantly affect the adhesion between the coating and the substrate.
Interfacial Mixing
When ions bombard the substrate surface during the application of bias voltage, they can cause some mixing of the atoms at the interface between the coating and the substrate. This interfacial mixing creates a transition layer, which improves the adhesion between the two materials. For example, in a TiN coating on a high - speed steel tool, the ion - induced interfacial mixing can form a gradient layer that gradually changes from the substrate composition to the coating composition, reducing the stress concentration at the interface.
Compressive Stress Generation
Bias voltage can also introduce compressive stress in the coating. Compressive stress can enhance the adhesion of the coating by counteracting the tensile stress that may develop during the coating deposition or in service. For example, in thermal cycling applications, the difference in the thermal expansion coefficients between the coating and the substrate can generate tensile stress. The compressive stress introduced by the bias voltage can help to prevent the coating from delaminating.
Impact on Coating Composition and Properties
The bias voltage can also influence the composition and properties of the coating.
Incorporation of Elements
In some PVD processes, the bias voltage can affect the incorporation of certain elements into the coating. For example, in a reactive PVD process where a gas is introduced to react with the vaporized target material, the bias voltage can influence the reaction rate and the distribution of the reaction products in the coating. This can lead to changes in the chemical composition of the coating, which in turn affects its properties such as hardness, corrosion resistance, and oxidation resistance.
Modification of Hardness and Friction Coefficient
By controlling the ion bombardment and the coating structure, bias voltage can modify the hardness and friction coefficient of the coating. A higher bias voltage usually results in a harder coating due to the densification and grain refinement effects. At the same time, the friction coefficient of the coating can also be adjusted. For example, a well - optimized bias voltage can reduce the friction coefficient of the coating, which is beneficial in applications where low - friction is required, such as in forming tools.
Optimization of Bias Voltage
The optimal bias voltage depends on several factors, including the type of tool material, the coating material, and the specific application of the tool. For example, different tool steels may require different bias voltages for optimal coating adhesion and performance. Additionally, the coating material also plays a role. Some coatings, such as ceramic coatings, may require a different bias voltage range compared to metal - based coatings.

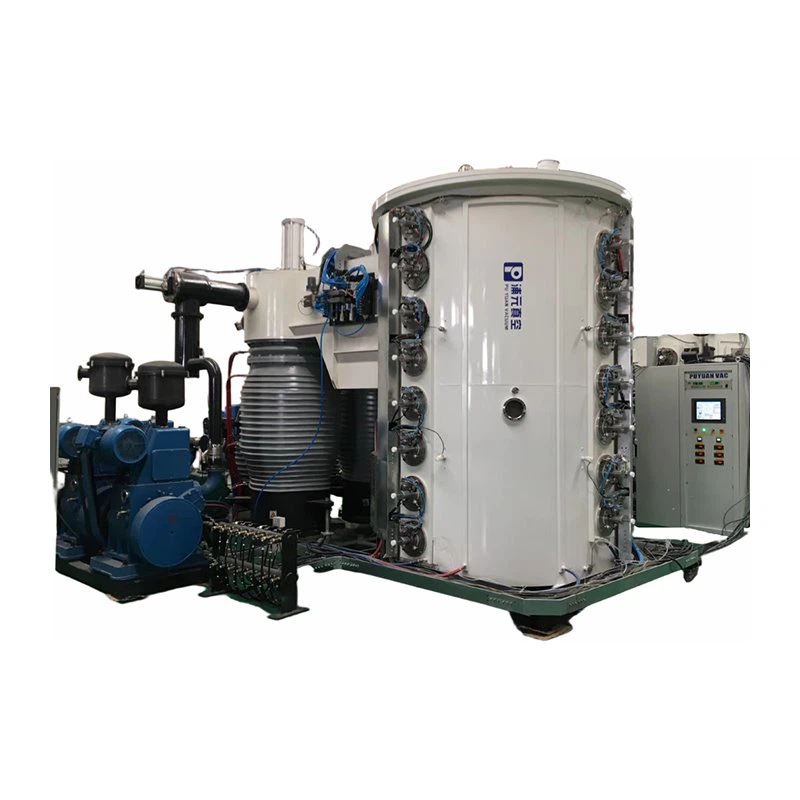

As a Tool PVD Coating Machine supplier, we have extensive experience in helping our customers optimize the bias voltage for their specific applications. We offer a range of Ceramics PVD Coating Machine that can be precisely controlled to achieve the desired bias voltage and coating properties. Our PVD Coating Machine for Furniture also utilizes advanced bias voltage control technology to ensure high - quality coatings on furniture components. And for specialized applications like headlight coating, our Double Door Headlight Special PVD Coating Machine can be tailored to meet the specific requirements with accurate bias voltage adjustment.
Conclusion
In conclusion, bias voltage is a crucial parameter in a Tool PVD Coating Machine. It controls ion bombardment, which is essential for surface cleaning, coating densification, and morphology control. It also influences coating adhesion, composition, and properties such as hardness and friction coefficient. By carefully optimizing the bias voltage, we can achieve high - quality coatings that enhance the performance and lifespan of cutting tools.
If you are interested in our Tool PVD Coating Machines or need more information about how bias voltage can be optimized for your specific applications, please feel free to contact us for a detailed discussion and procurement negotiation.
References
- Bunshah, R. F. (1994). Handbook of Deposition Technologies for Films and Coatings: Science, Technology, and Applications. Noyes Publications.
- Martin, P. (2002). Tribology of PVD coatings. Surface and Coatings Technology, 156(1 - 3), 1 - 24.
- Voevodin, A. A., & Donley, M. S. (2006). Superhard nanocomposite coatings: Thermal stability, oxidation resistance and toughness. Surface and Coatings Technology, 200(10 - 11), 3312 - 3323.
